SKU:

Hikvision DS-KIS702 2-draads IP-video-intercomkit 1x oproepknop - 7 inch touchscreen WIFI-monitor

Kit bevat: DS-KD8003-IME2/Surface x1 DS-KH6320-WTE2 x1 DS-KAD704 x1 DS-KAW30-2N x1 16GB TF-kaart x1

Connectez-vous pour le prix

299,00 €

Intercomtechnologie
- 2-Wire IP Point To Point
Intercomdraad
- Hub-Switch 2-Wire
Typische montage
- Opbouwmontage
- Inbouwmontage
Kleur van materialen

Deze combinatie bestaat niet.

Loading offers

HIKVISION

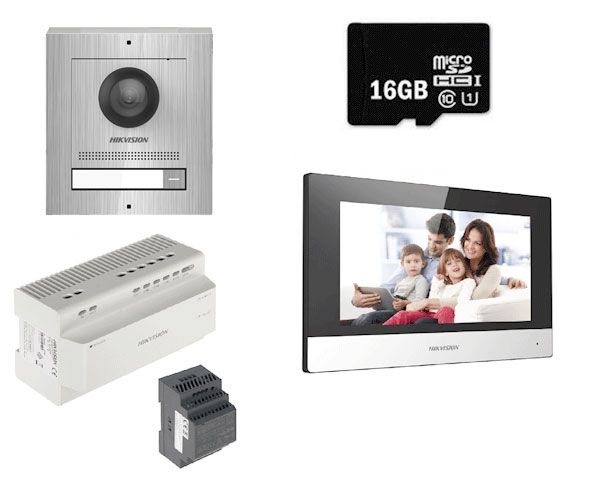

The DS-KIS702 2-Wire IP Villa Video Intercom Kit is a complete digital video intercom system that provides two-way communication between the inside and outside of your home or villa. The kit consists of an outdoor camera, an indoor monitor, a wall mounting box, a power adapter, and a 16GB TF memory card.

The DS-KIS702 indoor monitor features a 7-inch TFT-LCD color screen with a resolution of 800×480 pixels. It offers real-time viewing of the monitored area, photo capture, video recording, and remote monitoring via the Hik-Connect mobile app. Thanks to the IP network connection, the monitor can be used to receive video and audio calls from the outdoor camera even when no one is home.

The DS-KD8003Y-IME2 outdoor camera features a 2.8mm wide-angle lens with a 180-degree field of view. It also features infrared illumination for effective nighttime surveillance and an IP65 rating for outdoor use. The camera also features a built-in speaker and microphone for two-way audio communication.

The DS-KAW30-2N wall mount housing is specially designed for use with the DS-KD8003Y-IME2 outdoor camera. It is made of high-quality aluminum for increased strength and durability.

The DS-KAD704Y power adapter is designed to provide reliable and stable power to the outdoor camera and indoor monitor. It has an input voltage of 100-240VAC and an output voltage of 12VDC.

Finally, the 16GB TF memory card provided with the kit allows you to store images and videos recorded by the indoor monitor or outdoor camera.

Plug & Play Two-Wire IP Video Intercom Kit
User-friendly, hands-free indoor monitor with a 7-inch touchscreen.
Metal exterior panel, waterproof, IP65 rating
2-megapixel HD fisheye camera with night vision and a 180° wide viewing angle
Receive video calls on the mobile app anytime, anywhere
Supports live viewing of up to 16 IP cameras (ONVIF compliant)

Technical specifications of the DS-KIS702 2-wire IP video intercom kit for villas:

Door Station / System Parameters:

Processor: Embedded microcontroller
Operating System: Embedded Linux operating system
Operating Mode: Single-touch

Door Station / DS-KIS702 Video Parameters:

Camera: 2MP Super Definition Camera
Resolution: Main Stream: 1920 × 1080 (720p configurable); Sub-Stream: 720 × 480
Night Vision: Supports night vision and infrared light
Backlight Compensation: Supported
Digital Noise Reduction: Supported
WDR: True WDR
Field of View: Horizontal 146°, Vertical 82°
Video Compression Standard: H.264
Stream: Main Stream: 1080p@30fps, 720p@30fps (configurable); Sub-Stream: D1
Motion Detection: Supported
Flash Avoidance Frequency: 50 Hz, 60 Hz

Door Station / DS-KIS702 Audio Parameters:

Audio Input: Built-in omnidirectional microphone
Audio Output: Speaker, 20 cm sound effect > 80 dB
Audio Quality: Noise suppression and echo cancellation
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Intercom: Full-duplex audio intercom

Door Station / Capacity Parameters:

Substation Capacity: 16

Door Station / Peripheral Interfaces:

Debug Port: 1
RS-485: 1 (1 for Hikvision sub-module communication)
Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
Lock Control: 2 (2 relays, max. 30 VDC, 2 A)
Tamper Switch: 1
Power Interface: 12 VDC output (12 V, 500 mA max.)
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Humidity: 10% to 90%
Installation: Surface Mount
Protection Level: IP65
Button: 1
Power Supply: Powered by the KAD704Y or KAD706Y distribution series

Indoor Station / System Parameters:

Operating System: Embedded Linux OS
Memory: 128 MB
Flash: 32 MB

Indoor Station / Display Parameters:

Display Screen: 7-inch TFT LCD
Display Resolution: 1024 × 600
Operating Mode: Capacitive Touch

Indoor Station / Audio Settings:

Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in speaker
Audio Quality: Noise suppression and echo cancellation
Volume: Local or software control
Audio Compression Standard: G.711 U, G.711 A
Audio Compression Rate: 64 kbps

Intercom Specifactions
Intercomtechnologie	2-Wire IP Point To Point
Intercomdraad	Hub-Switch 2-Wire
Algemene specificaties
Typische montage	Opbouwmontage or Inbouwmontage
Kleur van materialen	Black
