VALUE S/FTP Cable Cat.8 (Class I), Solid Wire, LSOH, grey, 100 m

100 meters/box
Impedance: 100 Ohm

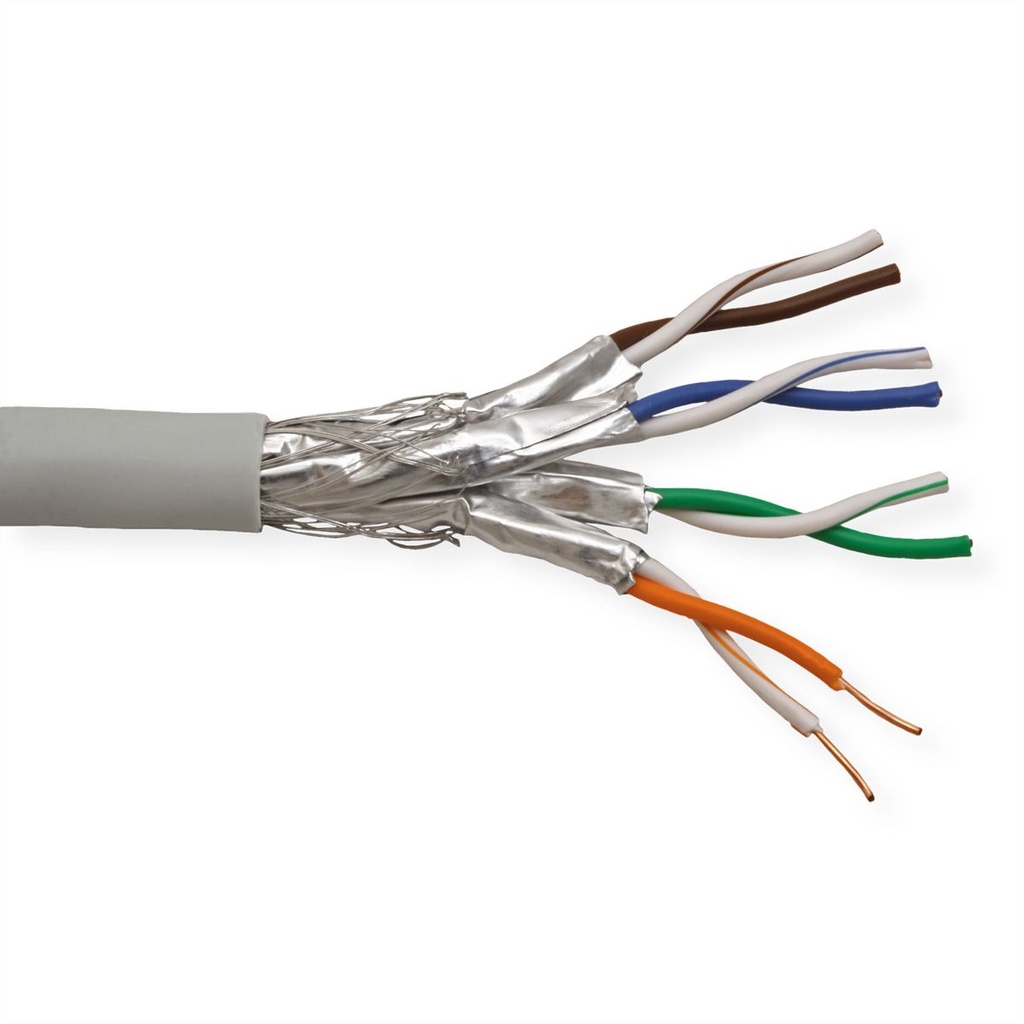

Construction:
- 8 lines, solid copper wire, AWG22
- pairs shielded with aluminum foil
- complete shielding in AL-MG braid
Color: gray
CPR-Dca-S2,d1,a1

For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, gray (1m to 3m)
The advantages of Category 8 cabling:
- Category 8 offers four times the bandwidth of Category 6A cabling, specified up to 2 GHz.
- Category 8 cables are shielded, though shielded cabling systems must be grounded, this is also not an issue in most data centers, since the connections are closer together.
- Category 8 connectors use the familiar RJ45 interface. The jacks require proper grounding to the cable and to the device they are installed into (patch panel or outlet), therefore they are designed for field termination.
- Category 8 number of connectors is limited to two connectors in the copper channel (excluding connections on end equipment), this is typically adequate in a data center environment and many common enterprise links.
- Maximum reach: 30 meters of channel (maximum 24m link cable + 2x 3m patch cables).
