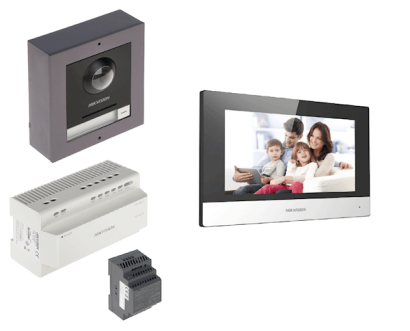

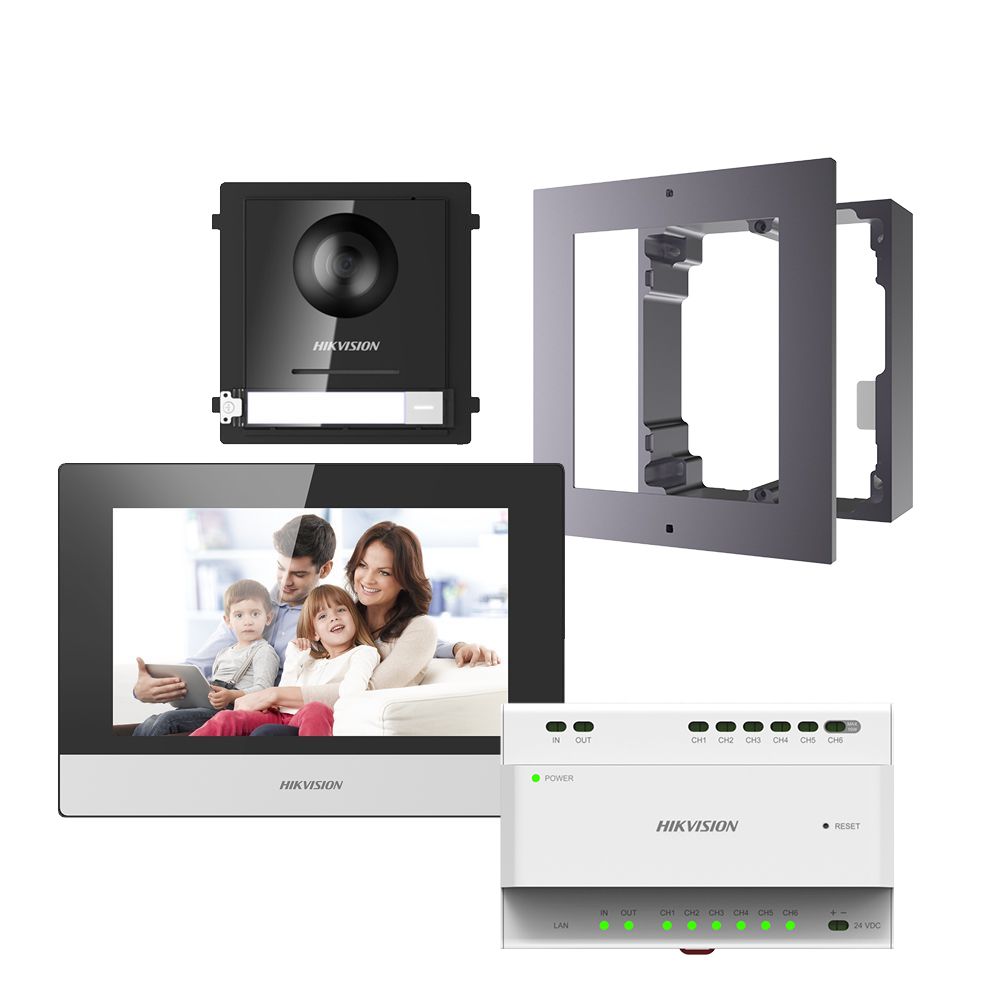

Kit d'interphone vidéo IP Hikvision DS-KIS704EY/Aluminium 2 fils HD avec 1 bouton d'appel et écran tactile Wi-Fi 7 pouces

Hikvision DS-KIS704EY/Aluminum 2-Wire HD Kit Video Intercom IP Kit 1x call button - 7Inch Touch WIFI Monitor

SKU: DS-KIS704EY

Kit d'interphone vidéo IP Hikvision DS-KIS704EY/Aluminium 2 fils HD avec 1 bouton d'appel et écran tactile Wi-Fi 7 pouces

Kit d'interphone vidéo Technologie 2 Fils HD avec Wi-Fi Platine et moniteur | Autoriser 8 moniteurs plus Facile à configurer sans réseau Application mobile avec P2P Montage en surface

Connectez-vous pour le prix

389,00 €

Intercom Technology
- 2-Fils IP Point à Point
Intercom Power
- Hub-Switch 2-Wire - 24VDC
Type De Montage
- Montage En Surface
- Montage encastré
Color Of Materials

Cette combinaison n'existe pas.

Loading offers

HIKVISION

The DS-KIS704EY 2-Wire Digital Video Intercom Kit offers a 2 MP image, a 7" touchscreen, simplified installation, and remote unlocking via app.

Thanks to its 2-wire technology, this kit is easy to install, even in existing buildings. It is therefore a true plug & play solution.

The included street panel features a 2 MP camera, which delivers excellent image quality even in low-light conditions. It also features infrared illumination, wide dynamic range (WDR), and a wide field of view (133° horizontal, 82° vertical). Its IP65 and IK08-certified housing is highly resistant to bad weather and vandalism.

Inside, the 7-inch touchscreen welcomes you with an intuitive and modern interface. It allows you to easily respond to visitors and unlock the door remotely via a mobile app. This provides increased security while maintaining greater freedom of movement.

In addition, the DS-KIS704EY 2-Wire Digital Video Intercom Kit supports up to 99 indoor monitors and 16 secondary panels, making it a suitable solution for both single-family homes and apartment buildings.

The DS-KIS704EY 2-Wire Digital Video Intercom Kit combines ease of installation, robustness, and advanced technology.

Excellent image quality with 2 MP resolution
One-touch calling, remote unlocking via app
True plug & play solution
Waterproof (IP65) and vandal-resistant (IK08) entry panel
7-inch touchscreen indoor monitor, user-friendly interface

Door Station:

System Parameters:

⦁ Processor: Onboard Processor

⦁ ROM Memory: 4 GB

⦁ RAM Memory: 256 MB

⦁ Operating System: Embedded Linux Operating System

Video Settings:

⦁ Fill Light: Low Light, Infrared (IR) Lights

⦁ Resolution: 2 MP

⦁ Lens: 1

⦁ Wide Dynamic Range (WDR): Supported

⦁ Field of View (FOV): Horizontal: 133°, Vertical: 82°

Main Stream: H.264

Sub-Stream: H.264

Audio Settings:

⦁ Audio Input: Built-in omnidirectional microphone

⦁ Audio Output: Built-in speaker

⦁ Volume Control: Adjustable

⦁ Audio Compression Standard: G.711 U, G.711 A

⦁ Audio Bit Rate: 64 Kbps

⦁ Audio Quality: Noise Reduction and Echo Cancellation

Capacity:

⦁ Maximum number of connectable indoor monitors: 99

⦁ Maximum number of secondary panels: 16

Network Settings:

⦁ Wired Network: 10/100 Mbps self-adaptive via 2-wire interface

⦁ Wi-Fi: Access Point (AP) mode only for configuration

Device Interfaces:

RS-485: 2 (1 RS485 output for communication with Hikvision secondary modules, 1 reserved)
Lock Control: 2 (1 relay, max. 30 VDC, 2 A; 1 DC pulse, 20 V, 4 A pulse, 300 mA holding current, 30 ohms max.)
Exit Button: 1
Door Contact Input: 1
Alarm Inputs: 2 (supports exit button or door contact)
Power Input: 12 VDC
Tamper Detection (TAMPER): 1
Debug Port: 1
2-Wire Interface: 1
DIP Switch: 6-position decimal switch

General Information:

⦁ Buttons: 0 to 2 (adjustable as needed)

⦁ Indicators: 4 LEDs (Door Open, Call, Intercom, In Use)

⦁ Power Supply: 48V (via DS-KAD7060EY splitter) or 12VDC

⦁ Power Consumption: ≤ 6W

⦁ Operating Temperature: -40°C to +60°C (–22°F to 140°F)

⦁ Operating Humidity: 10% to 90%

⦁ Operating Environment: Outdoor

⦁ Dimensions (W × H × D): 99.5 mm × 98.5 mm × 35 mm (3.92″ × 3.88″ × 1.37″)

⦁ Installation: Surface-mounted or Recessed

⦁ Protection rating: IP65 / IK08

⦁ Available languages: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese.

Audio/Video Splitter / Interfaces:

⦁ Power interface: 48 VDC

⦁ 2-wire interface: 6 ports (“IN”, “OUT” for cascading, CH1 to CH4 for street panels and indoor monitors)

Audio/Video Splitter / General:

⦁ Power Supply: 48 VDC

⦁ Power Consumption:

CH1 to CH4: < 30 W

Maximum Total Power Consumption: 30 W

⦁ Operating Temperature: -10°C to +55°C (14°F to 131°F)

⦁ Operating Humidity: 10% to 90% (non-condensing)

⦁ Dimensions (W × H × D): 143.7 mm × 92.4 mm × 65.9 mm (5.66″ × 3.64″ × 2.59″)

⦁ Installation: DIN Rail Mounting

⦁ Indicators:

6 Signal Indicators

1 Power Indicator

Intercom & Access Control
Intercom Technology	2-Fils IP Point à Point
Intercom Power	Hub-Switch 2-Wire - 24VDC
Spécifications générales
Type De Montage	Montage En Surface or Montage encastré
Color Of Materials	Black
