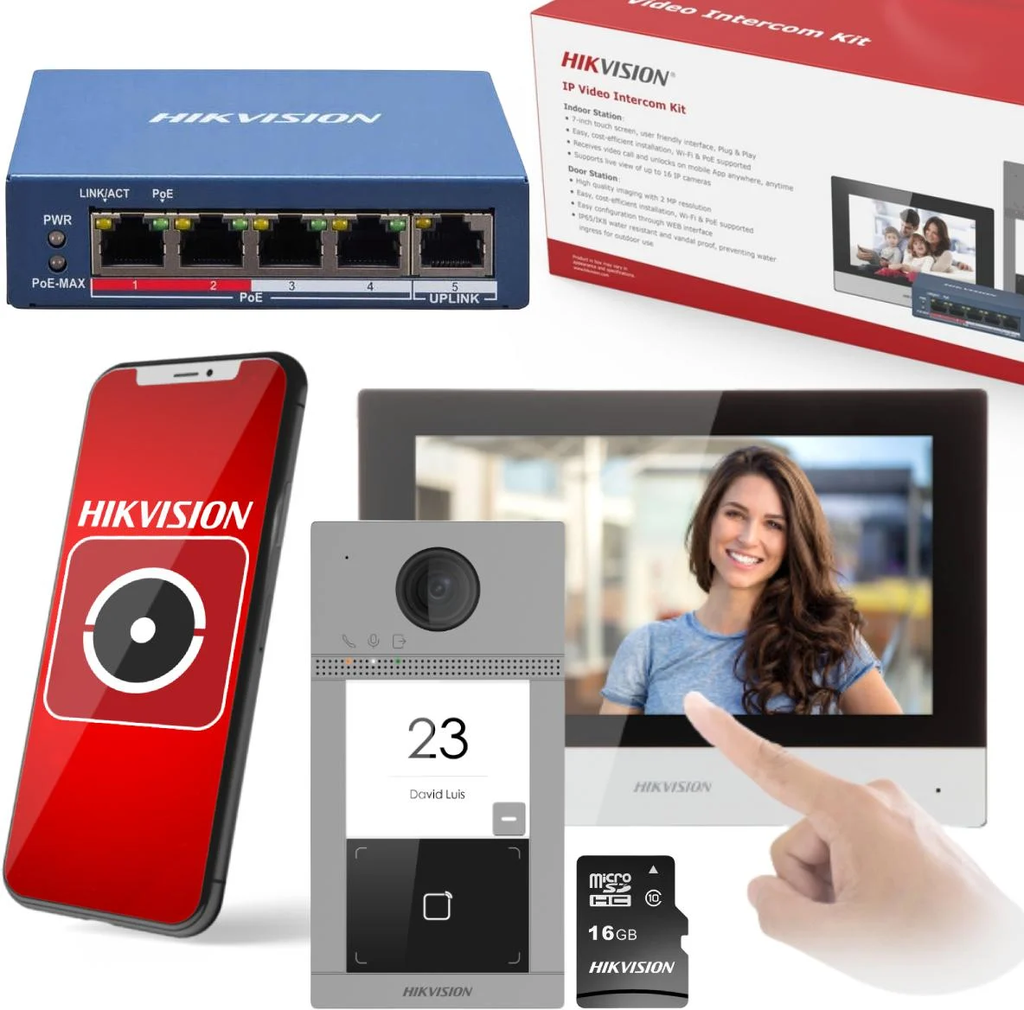

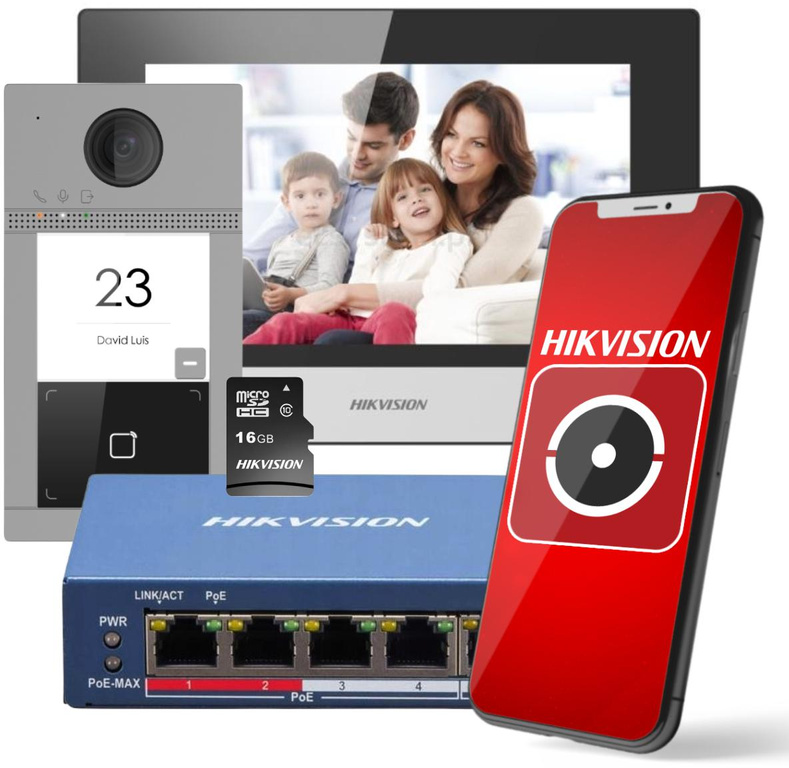

Hikvision DS-KIS604-S(C) IP-POE Kit d'interphone vidéo - 1 bouton d'appel Montage en saillie Aluminium - Écran tactile WIFI 7 pouces

Convenient mobile control via the Hik-Connect app.

Stores messages and captured images on a TF card.

Power adapter included in the package.

VIDEO INTERCOM:

• Compatibility: Hikvision II generation IP video intercoms
• Doorbell button: 1 pc
• Built-in proximity reader: 13.56 MHz S50
• Transducer: 2 MP
• Camera resolution: 1920 x 1080 - 1080p
• Camera viewing angle: 124°
• Image compression method: H.264
• Supported audio formats: G.711
• Network interface: 10 / 100 Mbps Ethernet

                                         Wi-Fi

• Wireless transmission range: Range limited only by Wi-Fi network availability
• Wi-Fi standard: IEEE 802.11b / IEEE 802.11g / IEEE 802.11n
• Network protocols: TCP/IP, RTSP
• Alarm output: 4 pcs
• Relay outputs: 2 x NO/NC
• RS-485

Main Features:

• Two-way communication,
• Built-in microphone,
• Built-in speakers,
• Noise suppression and echo cancellation,
• Tampering detection - ground removal,
• True WDR - Wide dynamic range
• BLC - Background light compensation
• DNR - Digital Image Noise Reduction
• Controlled entirely via network: WiFi / LAN
• The video intercom is installed in a plaster-mounted housing.
• The device can be operated with the Hik-Connect app for mobile devices, without the use of an indoor panel.
• Power supply: PoE (802.3af),

                                  12 V DC / 830 mA (max)

• Power consumption: ≤ 10 W (in operation)
• Operating temperature: -40 °C ... 53 °C
• Housing: Aluminum + Plastic, Protected against weather conditions
• Color: Black + Grey
• Vandal-resistant: IK08
• Waterproof rating: IP65
• Weight: 0.34 kg
• Dimensions: 174 x 91 x 30 mm

CASE:

• Number of installed modules: 1 pc
• Material: Plastic
• Color: Black
• Weight: 0.03 kg
• External dimensions: 174 x 91 x 19 mm

SWITCH:

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• LAN Ports: 1 x RJ45 100 Base-T - Uplink,

                   4 x 10/100 Base-T (4 x PoE (802.3af/at))

                   1, 2 - High Priority Ports

• LED Indicators: Power, PoE Max, Link/Act, PoE
• Transmission Speed: 10/100 Mbps: 1 LAN Port + 4 LAN & PoE Ports
• Maximum Output Power: 30 W / PoE Port
• Maximum Total Power: 35 W
• MAC Address Table: 1k
• Working Mode: Extend On: 300 m, 10 Mbps @ UTP Cat. 5e, 6 - Ports 1 ... 4

                                 Extend Off: 100 m, 100 Mbps @ UTP Cat. 5e, 6

• Operating temperature: -10 °C ... 55 °C
• Power supply: 48 V DC / 800 mA (charger included)
• Weight: 0.2 kg
• Dimensions: 105 x 86 x 28 mm
